WPC Exterior Wall Cladding for Building Renovation: How to Check Substrates, Fixings and Ventilation

Replacing an aging exterior finish with WPC wall cladding can improve a building's appearance and reduce routine maintenance. However, renovation projects are often more complicated than new construction. Existing walls may have uneven surfaces, hidden moisture, deteriorated render, inconsistent fixing conditions or insulation systems that were never designed to support a new cladding layer.

Choosing an attractive panel is only one part of the decision. Before ordering materials, contractors and project owners need to determine whether the existing wall can support the proposed system, how the panels will be fixed, and how moisture will escape from behind the cladding.

This guide explains how to assess an existing facade before installing WPC cladding, identify common installation risks and prepare a more reliable specification for renovation projects.

1. Quick Answer: What Should You Check Before Installing WPC Wall Cladding?

Before installing WPC exterior wall cladding on an existing building, complete five checks:

1. Inspect the substrate: Identify cracks, loose render, damp patches, corrosion and areas of weak adhesion.
2. Confirm the load path: Determine how the proposed subframe will transfer the cladding load into a suitable structural substrate.
3. Plan moisture management: Review rain penetration, drainage paths, ventilation and flashing details.
4. Check movement and tolerances: Account for uneven walls, panel expansion, joint positions and openings.
5. Verify the complete system: Confirm panel compatibility, fasteners, subframe materials, fire requirements and installation instructions.

The central principle is simple: the wall, subframe, cavity, flashing and cladding panels must work together as one exterior system. A suitable WPC panel cannot compensate for a weak substrate or poorly designed drainage details.

2. Key Takeaways

3. Start With the Existing Wall, Not the Cladding Sample

During renovation, the visible wall surface does not always reveal the condition of the material underneath. Paint can conceal cracks, render may have detached from masonry, and previous repairs may have created areas with different strengths.

Installing a subframe over these defects without investigation can lead to loose anchors, uneven panels or movement after the building returns to service.

Inspect the substrate systematically

Where the existing finish is uncertain, contractors should use appropriate inspection methods rather than assume that a visually intact surface is structurally sound. Anchor pull-out testing or other substrate testing may be necessary, depending on the wall construction and fixing design.

Do not treat the outer render, insulation or decorative coating as a structural fixing base unless the proposed system has been specifically designed and approved for that arrangement.

4. Design the Fixing System for the Actual Wall Construction

Exterior WPC panels are commonly installed on a supporting framework, but the appropriate arrangement depends on the panel profile, building structure, wind exposure, installation orientation and manufacturer's system details.

A renovation project may involve concrete, solid masonry, hollow masonry, timber framing or an existing insulated facade. These substrates do not provide identical fixing performance.

Before selecting anchors or brackets, the project team should establish:

• The type and condition of the structural substrate.
• The dead load of the cladding and supporting framework.
• The design wind loads applicable to the building location and height.
• The required anchor type, embedment and edge distances.
• The spacing and alignment of the supporting rails.
• Whether the wall contains insulation or concealed services.

Anchor capacity should be established for the actual substrate and design conditions. Generic fixing recommendations should not be transferred from one building to another without verification.

For example, a fixing that performs well in sound concrete may not be appropriate for hollow masonry or a deteriorated wall finish. Where the substrate is variable, a project-specific fixing schedule can help contractors identify the correct anchor and installation detail for each wall zone.

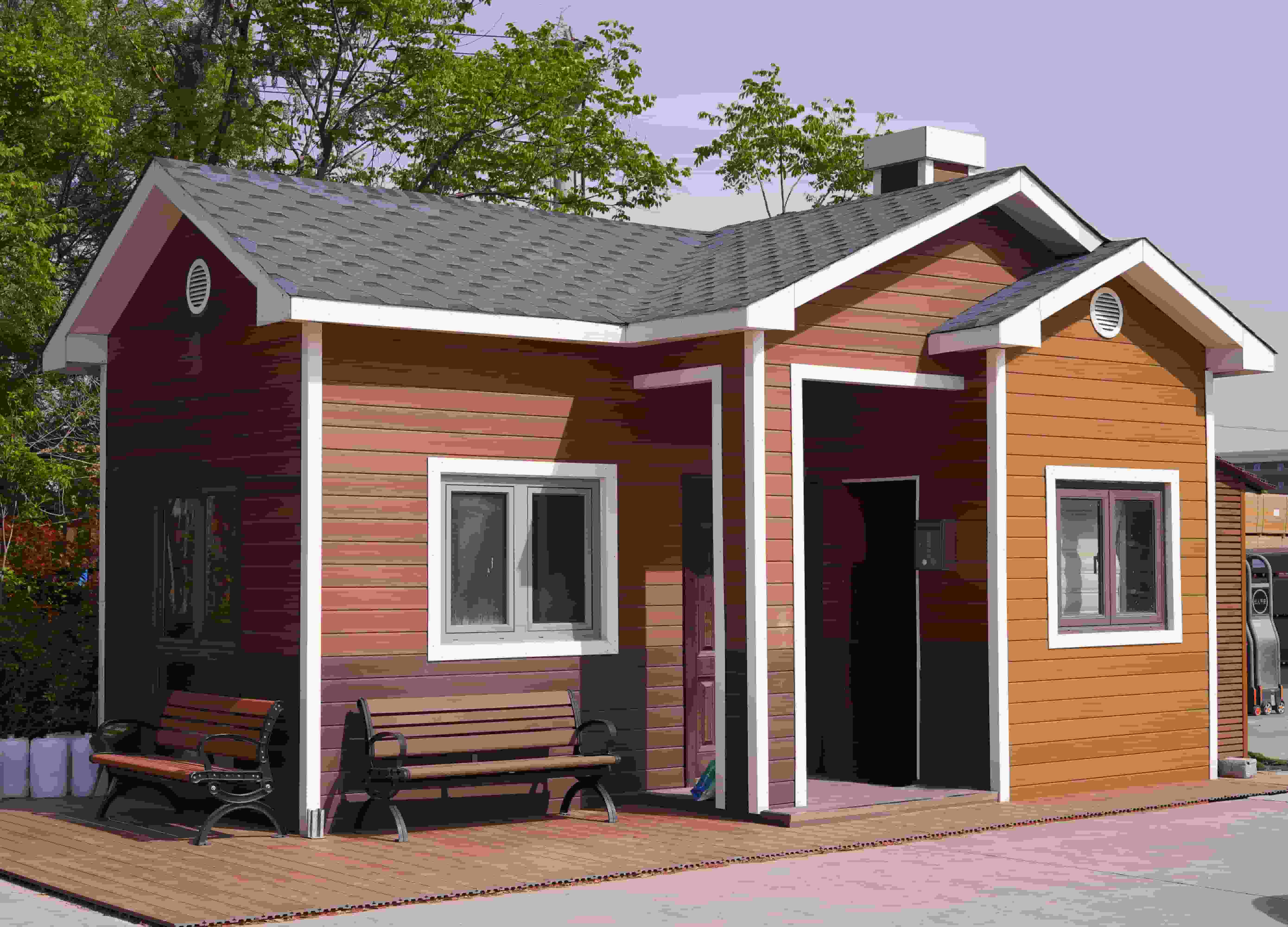

When comparing products, waterproof WPC exterior wall cladding panels can be assessed for the intended facade application, but their dimensions and installation requirements should be checked alongside the supporting system rather than considered separately.

5. Why Ventilation and Drainage Matter Behind Exterior Cladding

Rainwater can enter an exterior cladding assembly through joints, edges, penetrations or imperfect seals. The objective is not necessarily to assume that every joint will remain completely watertight, but to design the facade so that incidental moisture can be managed safely.

Depending on the building and the selected cladding system, this may involve a drained cavity, ventilation openings, flashing and a suitable water-resistive barrier behind the cladding.

Three details deserve particular attention

1. Water entry points. Review window heads, sill areas, door openings, parapets and service penetrations. These are common locations where poorly coordinated details can direct water into the wall assembly.

2. Drainage paths. Water that enters behind the panels needs a defined route out. Horizontal obstructions, sealant applied in the wrong location or blocked cavity openings can interfere with drainage.

3. Ventilation openings. Where the selected system relies on a ventilated cavity, the inlet and outlet arrangement must follow the system design. Openings may also need appropriate insect protection and fire-stopping provisions.

Do not assume that adding a larger gap behind the panels automatically solves moisture problems. Cavity depth, opening sizes, drainage details and ventilation requirements must be compatible with the selected assembly and local regulations.

6. Detail Windows, Corners and Wall Terminations Before Ordering

Large, uninterrupted wall areas are usually easier to plan than the edges and transitions around them. Yet these details often determine whether a renovation looks professional and remains durable.

These details should be reviewed before the final material quantity is calculated. Trim profiles, corner components, starter rails and termination accessories can affect both the visual result and the amount of panel cutting required.

7. Allow for Thermal Movement and Building Tolerances

WPC panels contain thermoplastic material and can expand or contract as temperatures change. The amount of movement depends on the product formulation, panel length, temperature range and installation conditions.

Renovation projects introduce another variable: existing walls may not be perfectly straight or plumb. If the supporting framework follows every irregularity without a planned alignment strategy, the finished cladding can show inconsistent joints and visible waviness.

Before installation, establish:

• The required panel end and side clearances.
• The installation temperature and relevant expansion instructions.
• The location of movement joints and panel terminations.
• The method for correcting wall irregularities with the subframe.
• The required clearances around windows, doors and fixed structures.

Longer panels can reduce the number of visible joints, but they may also require more careful movement planning and handling. Always use the manufacturer's guidance for the exact profile instead of applying a generic expansion gap to every WPC product.

For projects that also need a durable outer skin, review premium co-extrusion WPC wall cladding alongside the supporting system, since its surface construction and fixing details may differ from standard profiles.

8. Select the Panel for the Building's Exposure Conditions

Not every exterior wall experiences the same environment. A shaded courtyard facade may receive limited direct rainfall, while a coastal building can be exposed to wind-driven rain, high humidity and salt-laden air.

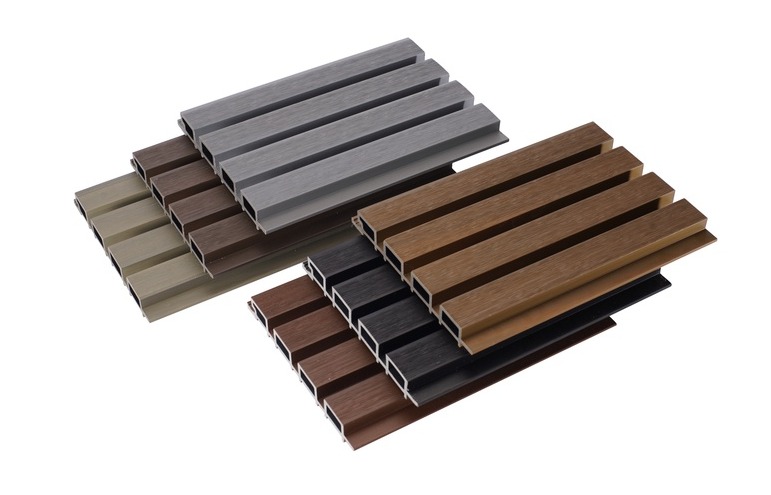

For projects that require a protective outer layer, weather-resistant co-extruded WPC wall panels can be included in the product review. Buyers should request the applicable technical information for the specific profile and confirm that its installation method suits the building's exposure conditions.

9. Fire Safety and Regulatory Checks Should Happen Before Procurement

Exterior cladding requirements can vary considerably according to building height, occupancy, facade construction and local regulations. A product's general description does not establish that it is suitable for every building.

Before ordering, determine whether the project requires specific fire classifications, testing of the complete facade assembly, cavity barriers or restrictions on combustible materials. These requirements may be especially important for multi-story buildings and projects with formal facade compliance procedures.

Also check whether the proposed subframe, insulation, membrane and cavity arrangement are compatible with the intended fire-safety design. A panel test report alone may not demonstrate compliance of the complete wall system.

The architect, facade consultant or responsible code professional should confirm the applicable requirements before the material is approved.

10. A Practical Pre-Installation Inspection Plan

For contractors managing multiple elevations, a documented inspection plan can reduce rework and make responsibilities clearer.

A small trial installation is also useful when the existing facade is irregular or the proposed trim details are complex. It allows the project team to check alignment, corner treatments, color appearance and installation sequence before the full elevation is covered.

11. Example: Renovating an Older Commercial Building

Consider a commercial building with aging painted render, several repaired cracks and uneven window reveals. The owner wants to replace the existing finish with WPC cladding while keeping disruption to occupied areas as low as possible.

A direct installation over the existing surface might appear faster, but it leaves several questions unanswered: Is the render sound enough for the proposed fixing method? Is moisture entering through the window surrounds? Can the new subframe correct the uneven facade? Where will water drain from behind the panels?

A more reliable sequence would be to survey the wall, investigate damp areas, confirm the structural fixing substrate, develop the subframe and flashing details, and then approve the panel layout. A trial section can verify the design before bulk installation begins.

The main benefit is not simply a better-looking facade. It is the opportunity to identify hidden problems while they are still accessible, rather than after the new cladding has concealed them.

12. FAQ: WPC Exterior Wall Cladding for Renovation

Can WPC wall cladding be installed over an existing wall?

Often, yes, provided the existing construction and proposed fixing system are suitable. The substrate must be assessed, and weak finishes, moisture problems and structural defects must be addressed before installation.

Does WPC exterior cladding need an air gap behind it?

The requirement depends on the selected facade system and building design. Some systems use a drained and ventilated cavity, while other assemblies have different requirements. Follow the manufacturer's instructions and the project's moisture-management and fire-safety design.

Can cladding anchors be fixed directly into render?

Not automatically. Render may be a non-structural finish rather than a reliable anchor base. The fixing design should identify the suitable underlying substrate and verify anchor capacity for the actual wall construction.

How can contractors prevent water from becoming trapped behind WPC panels?

Start by identifying the intended drainage strategy. Review flashing, cavity openings, wall-base details and penetrations, and avoid blocking drainage paths with sealant or other components. Existing moisture sources should be corrected before the wall is covered.

Is co-extruded WPC always the best choice for exterior walls?

No single construction is best for every project. Compare the panel's surface construction, weathering data, dimensions, installation method, appearance and cost against the building's actual requirements.

What information should I send a WPC cladding supplier before requesting a quotation?

Provide elevation drawings, approximate quantities, desired panel orientation, project location, building height, substrate type, window and corner details, and any relevant fire or facade requirements. Photographs of the existing wall can help with preliminary discussions, but they do not replace a site survey or engineering assessment.

What is the most common mistake in WPC cladding renovation?

Ordering the panels before the substrate, fixing system and water-management details have been resolved. A successful renovation depends on the complete facade design, not just the visible cladding material.
